PERCUSSION INITIATOR

DESCRIPTION

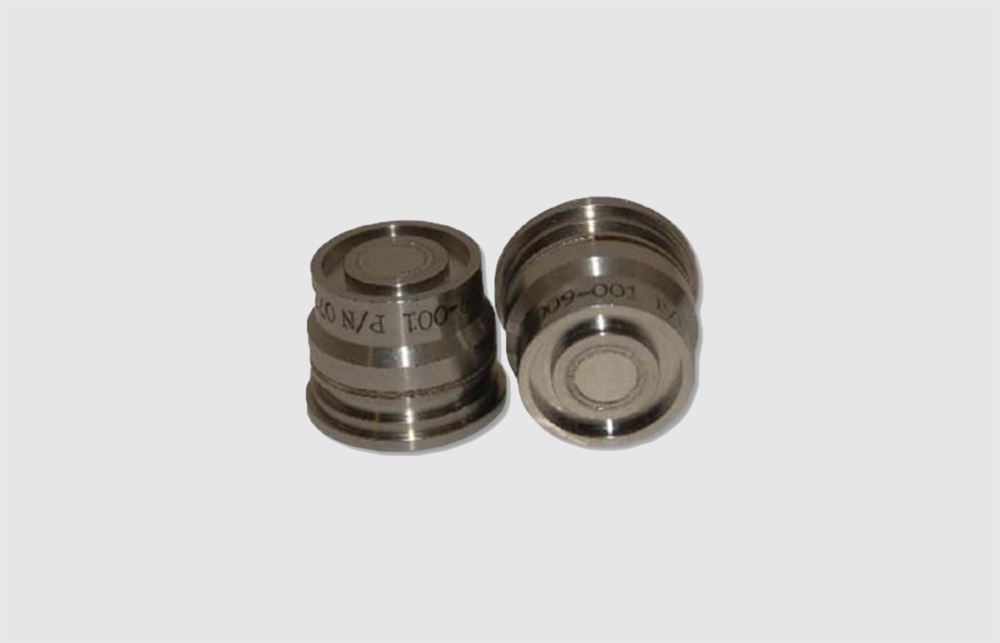

The Fike Percussion Initiators are percussion fired initiators for use in downhole oil and gas completion operations. They are typically used in Tubing Conveyed Perforating (TCP) operations to initiate the detonation chain of perforating guns for the completion of oil and gas wells.

The Percussion Initiator is available in multiple configurations for direct replacement of existing Percussion Initiators (See Ordering Information Table). It is intended for use in existing tools that meet the firing pin travel limits, “allfire” characteristics and other specifications listed in the data sheet. The Fike Percussion Initiator is hermetically sealed to resist corrosion and manufactured to meet the following specifications.

SPECIFICATIONS

Material of Construction:                              Body – Stainless Steel

Time and Temperature Exposure:                  See Ordering Information Chart

Gap:                                                             Initiates boosters at 1.25” max gap

Firing Characteristics: (refer to 2nd page)      All-Fire:

                                                                    Configuration A Firing Pin – 10 ft-lbs applied at 9.7 ft/s

                                                                    Configuration B: Firing Pin – 12.4 ft-lbs applied at 13.4 ft/s

                                                                    No-Fire:5.0 foot-pounds maximum

                                                                    Note: Limit firing pin travel to a maximum of .157 (3.99mm)

                                                                    to .165 (4.19mm) from back surface (refer to 2nd page)

Recommended Firing Pin:                             0.05 inch spherical radius

Pressure Rating:                                            20,000 psi before and after function

Shipping Classification DOT Hazard Class:     1.4 S (all P/N’s)

                                                                    UN Number: UN 0323 (all P/N’s)

                                                                    Ref Number: EX2009070008 (P/N 072120-1)

                                                                    EX2009070009 (P/N 072120-3)

                                                                    EX2009080482 (P/N 072140-1)

                                                                    EX2010101404 (P/N 072140-3)

                                                                    EC Cert Number: ENB/B/158/10 (all P/N’s)

Shelf Life:                                                     5 years

Note: All information and ratings are subject to change without notice. The user must be satisfied with the

products suitability for all applications.
